Máquina Automática Envolvedora de Cinta de PTFE WPM-1308

Name: Máquina Automática Envolvedora de Cinta de PTFE WPM-1308
Brand: JINGWEI
SKU: WPM-1308
Price: 1000.00 USD
Availability: InStock
Rating: 4.8 (89 reviews)

Modelo del producto: WPM-1308
Sellado de rosca Máquina
envolvedora de cinta de teflón / PTFE Modelo WPM-1308
Ancho de la cinta 5 mm, 7 mm, 10 mm, 14 mm
Peso 70KG
Tamaño 450 * 400 * 560 mm
Velocidad de trabajo 3-5 piezas / segundo (envolver 2-3 círculos) Tipo:
Eléctrico y automático
Potencia: 750W
Voltaje: 220V
Presión: 0.6Mpa
Envoltura de cinta de teflón aplicable para juntas roscadas, especialmente para cinta cruda Junta
roscada de 1/8 - 1 1/2 pulgadas Requisito para cinta de teflón hecha de resina de dispersión de politetrafluoroetileno
Solicitar presupuesto ahora

Descripción detallada

Automatic Thread Seal Tape PTFE Tape Wrapping Machine
This automatic Thread Seal /PTFE tape wrapping machine is suitable for wrapping PTFE tape for all screwed joints, including pipe threads, valve fittings, plumbing fittings, water purifier connectors, hydraulic oil pipe fittings, tracheal joints, and so on. It highly improves production efficiency.

1 Easy to operate, no need for skilled workers, the number of turns and winding speed can be set
2 High efficiency and high quality, no rework and loss
3 Finishing a complete process in an average of 3 seconds
4 5 times faster than the traditional skilled manual operation, 1 hour to produce 600-800 pieces
5 Winding closely and tightly, not easy to fall off
6 The data of the servo drive is accurate, reliable, and stable

Model	WPM-1308	WPM-1309
Tape width	5mm, 7mm, 10mm, 14mm (min.3mm, max.16mm customizable)
Fitting diameter	1/8-2 inches (2.5 inches can be customized)
Working speed	6-7 seconds/pcs (wrap 2-3 circles)	3-5 seconds/pcs (wrap 2-3 circles)
Type	electric and automatic with air source
Voltage	220/110VAC; 50/60Hz
PLC	H1U-0806MT-XP
Motor	servo driver and servo motor	IS620PS5R5I/SMH1-75B30CB-U231Z servo driver and servo motor
Touch screen	EV-043A11-AA	TK6071P
Weight	78KG
Size	725252cm

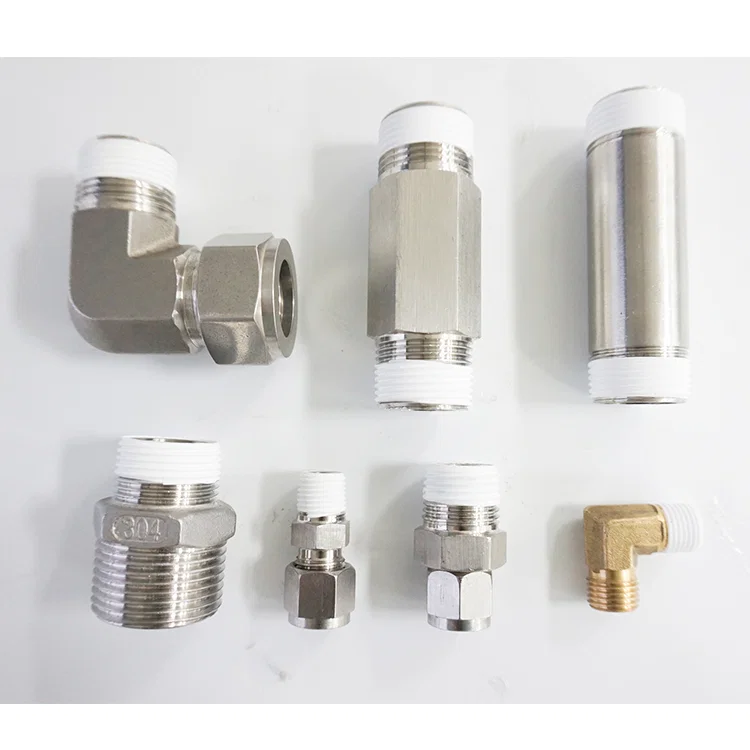

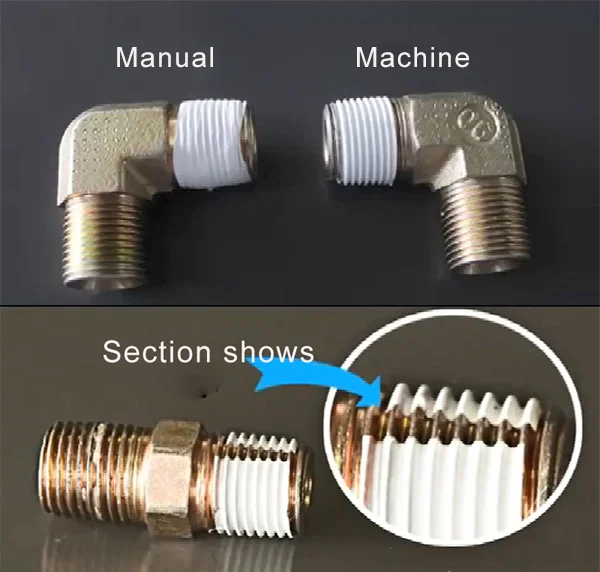

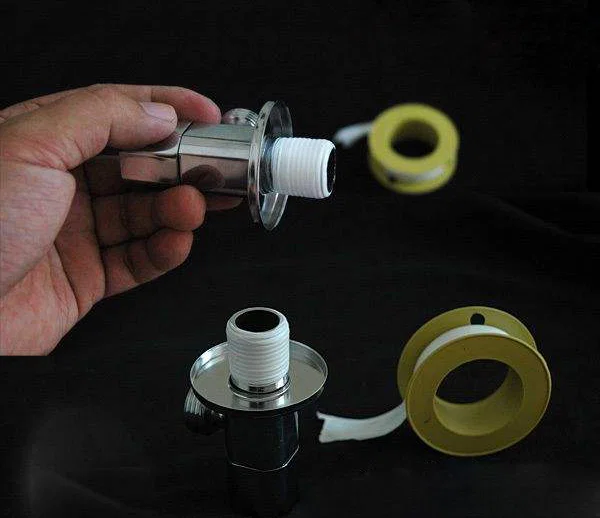

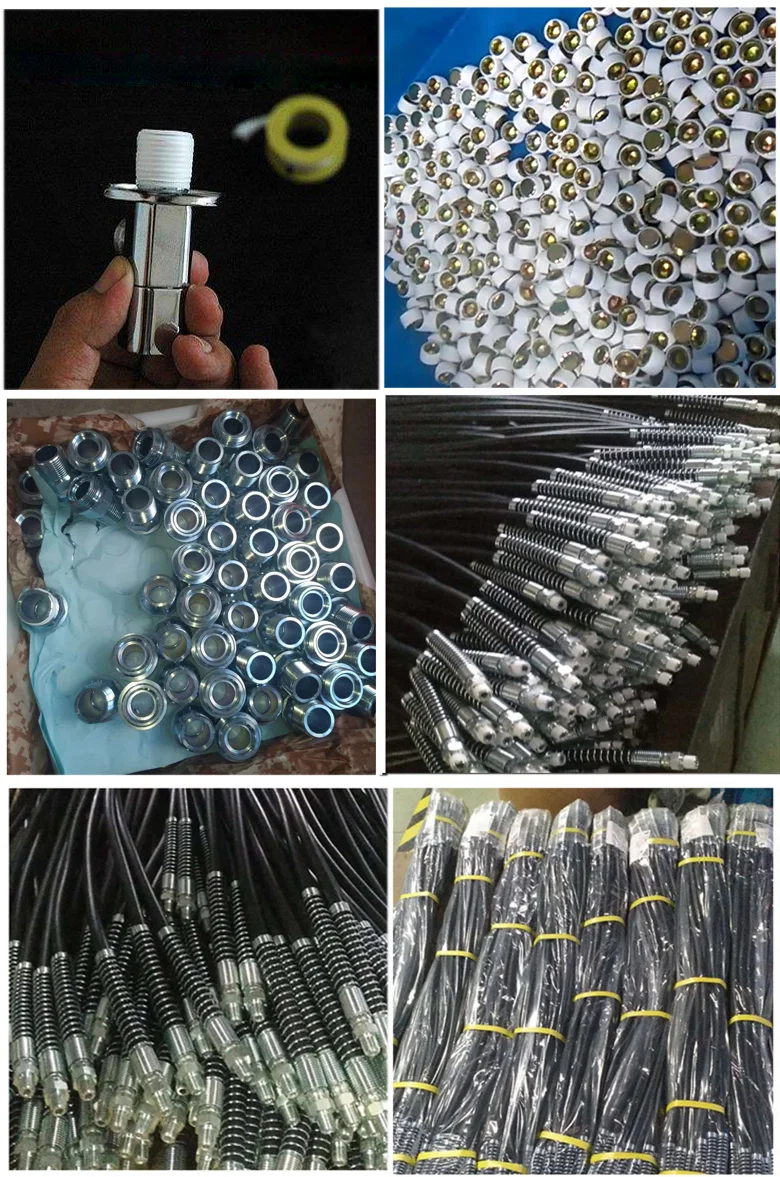

sample display of pipe threads ptfe tape wrapping machine, pipe threads teflon tape wrapping machine, valve fittings teflon tape wrapping machine, screw joints ptfe tape wrapping machine, plumbing fittings teflon tape wrapping machine, water purifier connectorteflon tape wrapping machine, hydraulic oil pipe fittings sample display of pipe threads ptfe tape wrapping machine, pipe threads teflon tape wrapping machine, valve fittings teflon tape wrapping machine, screw joints ptfe tape wrapping machine, plumbing fittings teflon tape wrapping machine, water purifier connectorteflon tape wrapping machine, hydraulic oil pipe fittings sample display of pipe threads ptfe tape wrapping machine, pipe threads teflon tape wrapping machine, valve fittings teflon tape wrapping machine, screw joints ptfe tape wrapping machine, plumbing fittings teflon tape wrapping machine, water purifier connectorteflon tape wrapping machine, hydraulic oil pipe fittings sample display of pipe threads ptfe tape wrapping machine, pipe threads teflon tape wrapping machine, valve fittings teflon tape wrapping machine, screw joints ptfe tape wrapping machine, plumbing fittings teflon tape wrapping machine, water purifier connectorteflon tape wrapping machine, hydraulic oil pipe fittings
